Tower Microphone TM10 for BATmode systems
Electret Ultrasonic Microphone without Test Signal Speaker

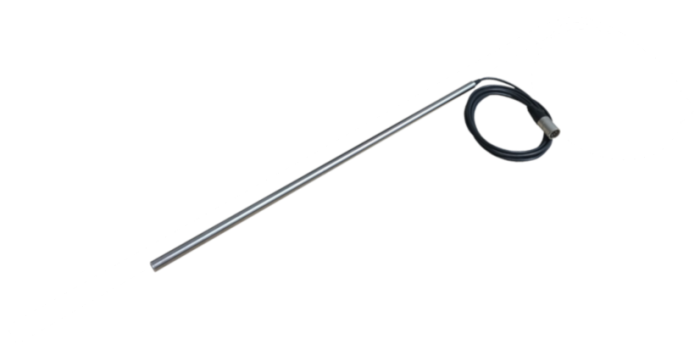

The electret TM10 ultrasonic stick microphone was specially developed for the installation in the tower wall of large wind turbines for the qualitative detection of bat activity at the level of the lower rotor tips. By omitting a test signal speaker, the microphone has a very small diameter of only 12mm and the required mounting hole of 14mm is as small as possible. The microphone is made of stainless steel and an aluminum front panel. Its length of 500mm allows mounting even in thick-walled towers of large wind turbines with thicknesses up to 460mm. To fix the microphone in the wall, use the optional TM10 - Mounting Kit. For adaptation to different wall thicknesses the tripod of the mounting kit slides along the microphone stick and can be fixed either with included adhesive pads or magnetic feet on the tower inner wall. Thus, it allows a defined and secure positioning of the stick tip without having to drill additional holes for microphone attachment. However, if mounting with screws is preferred, you can also use the tripod (see Drilling Plan - TM10 in Product Attachments).
To prevent the ingress of rainwater through the mounting hole it can be drilled slightly sloping into the tower wall. The integrated microphone heater avoids condensation and increases the reliability of the microphone even in adverse weather conditions. Like all other of our microphones, the TM10 is of course compatible with BATmode 2S and BATmode 2S+ and therefore also with the UltraSoundGate 116Hnbm and 416Hnbm from Avisoft Bioacoustics.
Note : To reduce electromagnetic interferences, we recommend to place the BATbox with the detection system as close as possible to the microphone hole and as far away as possible from interference sources such as power and control cables. For this the microphone is delivered with a 3m connection cable. In principle, it is also possible to install the BATbox on the tower base and to use an extended microphone cable. However, this may cause a significant reduction in recording quality.
Main features
- Knowles FG - Microphone capsule
- Integrated microphone heating
- ∅ 12mm / Length 500mm
- Tower wall mounting with TM10 - Mounting Kit available separately
- Electret Ultrasonic Microphone without Test Signal Speaker
Specifications
- Knowles FG - Microphone capsule
- Microphone heating
- Approximate input-referred self-noise level (bandwidth: 30-50 kHz): 26 dB SPL
- Approximate sensitivity: 500mV / Pa
- Power supply : 5V, 20 mA (provided by UltraSoundGate x16Hnbm)
- Connector: male XLR-5 plug
- ∅ 12mm / Length 500mm
- Required bore hole ∅: 14mm
- Cable length: 3m
- Tripod TM10-Mounting Kit optionally available for tower wall mounting
