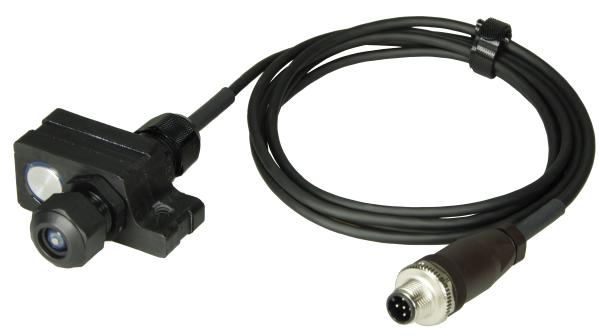

You can use the MC32 to mount, protect, and test the ultrasonic microphone of a BATLOGGER device. It can also be used to monitor the microphone condition so that you can respond to any defects or sensitivity reduction and ensure that you do not lost any bat recordings. Installation may be for general operation, unattended operation, installation in the field and on measurement masts.
Key features:- Reliable, unattended operation
- For long-term use
- Daily status message via SMS/Email
- Microphone is easy to change by hand
- Holds the microphone securely
- Tripod socket gives mounting flexibility
Specifications:
Dimensions, MC23 (mm; without cable): 75 × 59 × 27
Dimensions, MC32W (mm; without cable): Ø76 × 28 mm
Weight MC23 (g): 108
Weight MC32W (g): 442
Cable length (m): 2
Plug: M12, 3.5mm
Test function signal/transducer (kHz): 32
Weather protection (when mounted): IP67
Operating conditions (non condensing): -10..+50°C, 10..90%RH
Storage conditions (non condensing): -20..+60°C, 5..95%RH
Audio connection: 2m (MC32) / 5m (MC32W), 5-pole connector
GSM connection (MC32W only): 5m, SMA connectors
Modes: Manual, Automatic
