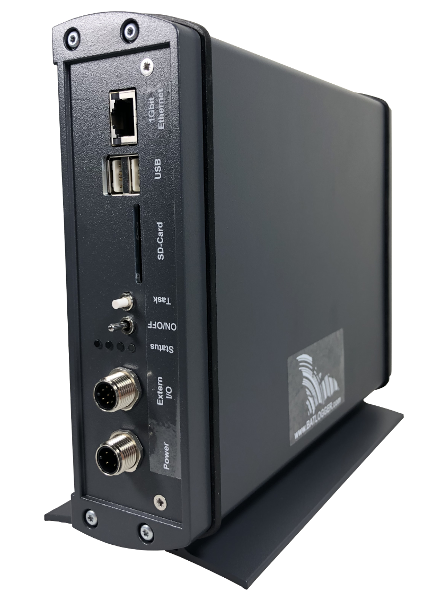

With the BATLOGGER WE X you get real-time control of your device allowing you to change settings, view critical full-spectrum data, or download recordings 24/7, from any location. via the BATLOGGER Connect. With this device, you can save costs and minimise the need to climb wind turbines.
This device has been designed for long-term, autonomous use on wind farms. It has either one (WE X1), two (WE X2), or 4 (WE X4) microphones depending on the model. The microphone(s) come with a 5m cable and microphone tester/sensor, and one integrated mounting bracket for fixing to the gondola of a wind turbine. An air pressure monitor and humidity sensor provide additional information.
Key features:
- Record bats in wind turbines
- Microphone test and additional sensors
- Remote connection with BATLOGGER Connect
- Versatile alarms
- Up to 4 microphones - with a cable length of up to 100m
- Data-rich reporting
BATLOGGER Connect:
- Direct access to your device
- Remote monitoring, configuration, and data synchronisation
- Find problems immediately and ensure your devices are recording properly
- Transfer raw data to your computer, whenever and wherever
- Three annual subscription packages are available:
- Bronze - Settings and alarms enabled. No data transmission. No cloud storage.
- Silver - Settings, Alarms, Statistics, and access to recordings enabled. 1GB/month LTE data transfer. 2GB cloud storage.
- Gold - Settings, Alarms, Statistics, and access to recordings enabled. 5GB/month LTE data transfer. 10GB cloud storage.
Field of application: Wind turbine monitoring
Dimensions (mm): 250 x 200 x 100
Weight (kg): 2.04
Protection class: IP30
Operating temperature (°C): 0 - 45
Charging temperature (°C): 0 - 40
Operating humidity (%RH): 10 - 90 (non-condensing)
Power supply: 100-240 VAC, (12 VDC 30W)
Display: Status LEDs
Trigger function: yes
Scheduler: yes, adjustable, with sunset/sunrise times
Storage: Internal hard disk: c. 100 GB
Cellular radio: 4G LTE (Europe/APAC or N. America)
Microphone/s:
- Type of microphone: BATLOGGER X Microphone
- Number of microphones: 1, 2, 4
- Automatic microphone test: yes
Acoustic signal processing: Real-time 16bit-full spectrum
Sensitivity range (kHz): 10–150
Data transfer:
- BATLOGGER Connect - Web interface
- SD/SDHC/SDXC cards (SD 2.0)
- Maximum capacity compatible: 128 GB
- Format: FAT32
- External hard disk via USB port
- Format: FAT32 or ext4
- USB stick formatted via USB port
- Format: FAT32 or ext4
Sensors:
- Temperature: yes
- Relative humidity: 0-100% RH ±3% RH (max), 0–80% RH
- Air pressure: 500 hPa-1100 hPa ±0.5 hPa (-10-50°C)
The BATLOGGER WE X1 comes with: 1x microphone; 1x sensor (microphone test, air pressure, humidity); 1x waterproof Y-cable 5m; 1x Round mounting bracket for gondola mounting.
The BATLOGGER WE X2 comes with: 2x microphone; 2x sensor (microphone test, air pressure, humidity); 2x waterproof Y-cable 5m; 1x Round mounting bracket for gondola mounting; 1x Mounting bracket without LTE for second microphone/sensor.
Please note that the estimated delivery is 4-5 days.
Pour une installation du Batlogger WE /X sur mât de mesure veuillez cliquer sur ce lien https://batlogger.om/en/faqs/wex_outdoor
