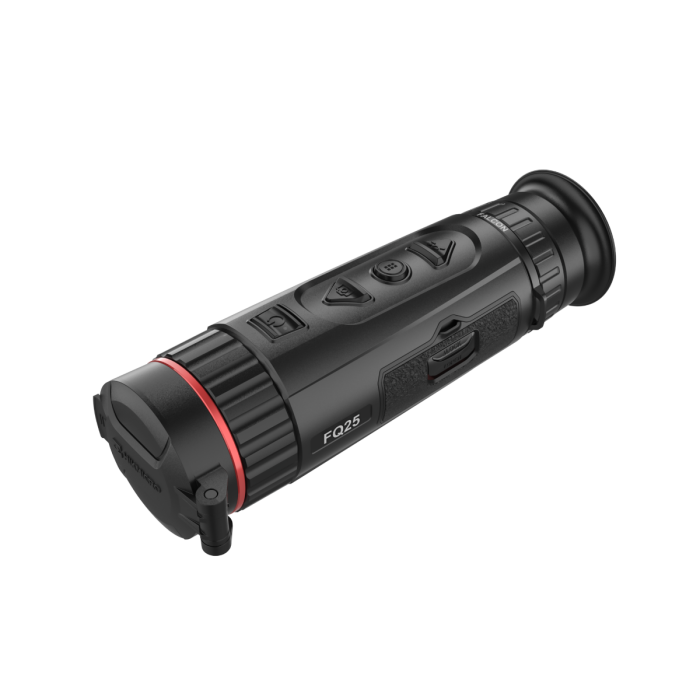

HIKMICRO FQ25 Falcon Thermal Monocular 25mm

The HIKMICRO Falcon FQ25 Thermal Monocular is a handheld thermal imaging device designed to deliver clear, detailed observation in complete darkness and challenging environmental conditions. Equipped with a high-resolution thermal sensor and advanced image processing, it provides reliable performance for a range of field applications including ecological surveys, search work, and general outdoor observation.

At its core is a 640 × 512, 12μm VOx uncooled focal plane detector with a thermal sensitivity of <20 mK. This allows the device to distinguish fine temperature differences, helping to reveal subtle detail even when there is minimal contrast between the subject and background.

Key Features:

• 640 × 512 resolution thermal sensor with 12μm pixel pitch
• High thermal sensitivity (NETD < 20 mK) for detailed image clarity
• 25mm F1.0 objective lens with up to 1200m detection range
• 1024 × 768 OLED display for clear viewing
• Image Pro processing for enhanced image optimisation
• Digital zoom: 1×, 2×, 4×, 8×
• Built-in 64GB memory for video recording and image capture
• Hotspot and hot track functions
• Replaceable and rechargeable Li-ion battery
• Up to 5 hours continuous operation
• IP67-rated housing for protection in outdoor conditions

Thermal Performance

The Falcon FQ25 combines high sensor sensitivity with a large aperture lens to capture more infrared radiation, producing a high-contrast thermal image. The system is designed to provide consistent image quality across a range of weather conditions and environments.

Display & Imaging

The 0.39-inch OLED display (1024 × 768) presents a clear image with multiple colour palettes including Black Hot, White Hot, Red Hot, and Fusion. Image Pro processing enhances both target detail and background clarity.

Design & Usability

The monocular features a compact and robust design with an IP67 rating, making it suitable for use in demanding outdoor environments. The replaceable rechargeable battery supports extended use in the field.

Specifications:

• Sensor: VOx uncooled focal plane array
• Resolution: 640 × 512
• Pixel pitch: 12 μm
• Frame rate: 50 Hz
• Spectral range: 8–14 μm
• Lens: 25mm, F1.0
• Field of view: 17.5° × 14.0°
• Minimum focus distance: 2.5 m
• Optical magnification: 1.42×
• Detection range: up to 1200 m
• Display: 0.39" OLED, 1024 × 768
• Storage: 64 GB built-in
• Battery: Rechargeable Li-ion
• Operating time: up to 5 hours
• Operating temperature: -30°C to 55°C
• Protection rating: IP67
• Dimensions: 190.3 × 58.3 × 66.9 mm
• Weight: 500 g
