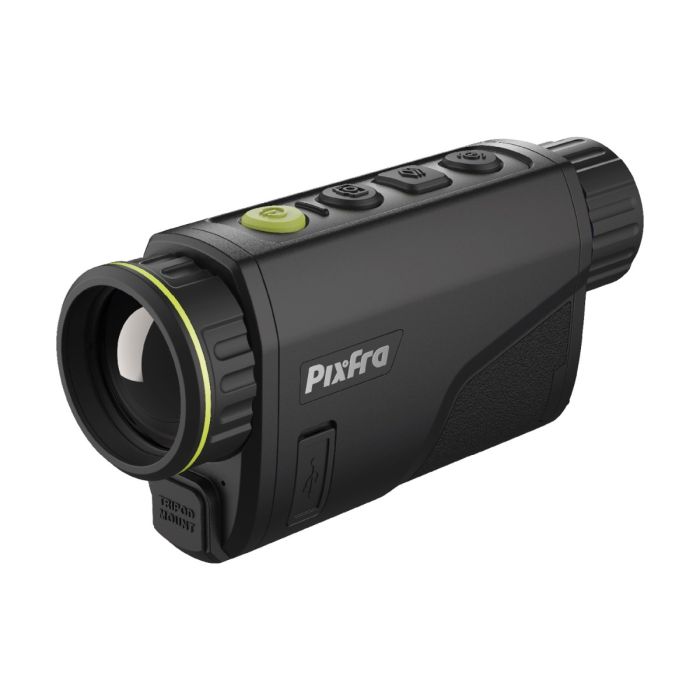

The Pixfra Arc Thermal Imaging Monocular range is designed for ecological survey work, offering high-sensitivity thermal imaging in a compact, lightweight format. Both the Arc A613 and A625 models use a 640×512, 12µm, <30mK NETD sensor to detect subtle heat signatures and display clear thermal images on a 1440×1080 OLED screen.
These devices are suitable for a range of ecological applications, including bat surveys, general wildlife observation and nocturnal monitoring.
The primary difference between the Pixfra Arc A625 and A613 is the objective lens size, which affects detection range, magnification and field of view. The A625 uses a 25mm lens, providing a longer detection range of up to 1300m and higher magnification. The A613 uses a 13mm lens, offering a wider field of view, which is useful for scanning larger areas such as during bat surveys or general wildlife observation.
Model Options
Pixfra Arc A613 - 13mm Lens
The A613 is designed with a wide field of view, making it particularly suited to bat surveys and situations where a larger observation area is required.
- 13mm f1.0 objective lens
- Detection range up to 670m
- Wide field of view: 32.3° (H) / 25.8° (V)
- Close focus distance: 0.5m
- Magnification: 0.875x
Pixfra Arc A625 - 25mm Lens
The A625 offers increased detection range with a narrower field of view, making it better suited to longer-distance observation.
- 25mm f1.0 objective lens
- Detection range up to 1300m
- Field of view: 17.5° (H) / 14.0° (V)
- Close focus distance: 2m
- Magnification: 1.68x
Key Features
- 640×512 thermal sensor with <30mK NETD sensitivity
- 1440×1080 OLED display for clear image output
- Built-in video and audio recording
- 32GB internal storage
- Multiple colour palettes
- Digital zoom: 1x, 2x, 4x, 8x
- Wi-Fi connectivity with screen sharing via Pixfra app (up to 4 devices within 20m)
- Hot spot tracking function
Power & Performance
- Rechargeable lithium battery (3,200 mAh)
- Battery life: up to 6–6.5 hours depending on model
- USB-C charging
- Operating temperature: -30°C to +60°C
Design & Durability
- Lightweight design (approx. 304g–330g without battery)
- Ergonomic body with simple control layout
- Magnesium alloy casing
- IP67-rated for protection against water and dust
Both models allow users to view, record and share thermal observations in the field, with configuration and control available via the Pixfra mobile app on iOS and Android devices.
