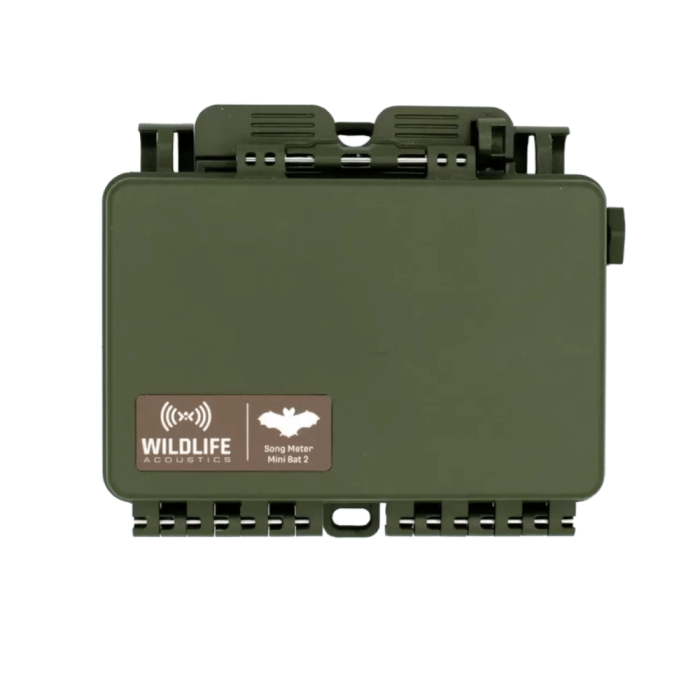

The Song Meter Mini Bat 2 Lithium-ion Ultrasonic Recorder is a compact, weatherproof bat recorder designed for long-term ultrasonic monitoring in the field. Using up to six 18650 lithium-ion batteries, it can record for up to 125 ten-hour nights, making it ideal for extended deployments where minimising site visits is important.
Designed for ecologists, consultants and researchers, the recorder features a built-in low-noise ultrasonic microphone capable of capturing high-quality full-spectrum recordings, helping to detect quieter or more distant bat calls. Advanced triggering technology helps reduce false triggers, resulting in more usable recordings and less time spent filtering unwanted files during analysis.
The Song Meter Mini Bat 2 can record in both full-spectrum WAV and zero-crossing formats and is programmable using the free Song Meter Configurator app for iOS and Android devices. Using Bluetooth® connectivity, you can configure schedules, GPS location and recording settings directly from your smartphone or tablet.
An optional acoustic stub microphone can also be added for recording birds, amphibians and other wildlife vocalising within the acoustic range. Ultrasonic and acoustic recording can be scheduled during different periods within the same deployment, although not simultaneously.
Please note: Acoustic recording requires an optional acoustic microphone, sold separately. Click here to view the acoustic mic.
Key Features
- Records ultrasonic bat calls in full-spectrum (WAV) and/or zero-crossing (ZC) formats
- Built-in low-noise waterproof ultrasonic microphone
- Up to 125 ten-hour nights of ultrasonic recording using 6 x 18650 lithium-ion batteries
- Optional acoustic microphone available for birds, amphibians and other wildlife
- Bluetooth® enabled for configuration via the free Song Meter Configurator mobile app
- Programmable schedules and GPS location settings
- Compact, lightweight and highly portable
- Redesigned ergonomic lockable enclosure
- Rear tripod mount for flexible deployment options
- IP67-rated fully weatherproof housing
- Compatible with SDHC/SDXC cards up to 2TB
Bundle Options Available
- Mini Bat 2 Lithium-ion unit only
- Mini Bat 2 Lithium-ion unit with 6 x 18650 batteries and 64GB SD card
- Mini Bat 2 Lithium-ion unit with 6 x 18650 batteries, 64GB SD card and Master Lock Python cable lock
Technical Specifications
- Recording Format: Full Spectrum and/or Zero Crossing
- Channels: 1 built-in waterproof ultrasonic microphone, optional second acoustic microphone
- Ultrasonic Sample Rates: 256kHz, 384kHz, 500kHz
- Acoustic Sample Rates (optional microphone): 8kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 96kHz
- Power Options: 1–6 x 18650 lithium-ion batteries
- Run Time: Up to 125 ten-hour nights
- Storage: 1 x SDHC/SDXC card slot (supports up to 2TB)
- Dimensions: 120 x 142 x 40 mm
- Weight: 231g without batteries / 517g with batteries
- Housing: IP67-rated polycarbonate enclosure
- Operating Temperature: -20°C to 85°C
- Warranty: 2 years recorder
Technical Specifications:
- Recording Format: Full Spectrum and/or Zero Crossing
- Channels: 1 built-in waterproof ultrasonic microphone and optional second acoustic microphone for recording birds, frogs and other wildlife
NOTE: The Song Meter Mini Bat 2 can be programmed to record ultrasonic activity at some times and non-ultrasonic acoustic activity at other times during the same deployment, but not simultaneously. - Sample Rates
Ultrasonic: 192kHz, 256kHz, 384kHz, and 500kHz
Acoustic (with optional acoustic microphone): 8kHz, 12kHz, 16kHz, 22.05kHz, 24kHz, 32kHz, 44.1kHz, 48kHz, 96kHz
NOTE: Specifications for acoustic recording is identical to the Song Meter Mini 2 model. - Power Options: 1-6 Lithium-ion Batteries
- Run Time: Up to 125 10-hour nights
- Storage: 1 SDHC/SDXC card (up to 1 TB)
- Dimensions:
- Height: 4.7" / 120 mm
- Width: 5.6" / 142 mm
- Depth: 1.6" / 40 mm
- Weight: Without Batteries: 0.51 lb / 231 g
- With All Batteries: 1.14 lb / 517g
- Enclosure Material: IP67-rated Polycarbonate Housing
- Enclosure Environmental Protection: Fully weatherproof
- Operating Temperature: -4°F to +185°F or -20°C to 85°C
- Warranty: 2 years detector/1.5 years microphone
