The Titley Scientific Ranger is a fully customisable bioacoustic recorder designed for long-term wildlife monitoring in demanding field conditions. Developed from the proven Titley Scientific Chorus and Anabat Swift recorders, the Ranger combines flexible multi-channel recording, rugged weatherproof construction and long deployment times in a compact and lightweight unit.
Designed for professional ecological surveys and research, the Ranger allows simultaneous recording of ultrasonic and acoustic wildlife using a wide range of interchangeable microphones. Whether monitoring bats, birds, amphibians or other vocalising wildlife, the Ranger provides a highly adaptable solution for both short-term surveys and permanent installations.
Key Features
- Simultaneous recording of ultrasonic and acoustic wildlife
- Three-channel system supporting acoustic and ultrasonic microphone combinations
- Built-in colour touchscreen for standalone setup and configuration
- No phone or Bluetooth connection required for deployment
- Built-in GPS for geotagging recordings and transect tracking
- Automatic sunset and sunrise scheduling based on GPS location
- Supports full-spectrum (.wav), zero-crossing (.zc), GPX and CSV outputs
- Compatible with external power supplies and solar panel systems
- Weatherproof and shockproof IP67-rated camouflage housing
- User-replaceable microphones for easy field maintenance
- Multiple mounting options including tripod mounts, cable ties and straps
- Compatible with free Titley Insight analysis software
Flexible Recording Configurations
The Ranger supports a wide range of microphone combinations to suit different survey requirements. The recorder features three channels (A, B and C), allowing users to record:
- Mono acoustic recording
- Stereo acoustic recording
- Mono ultrasonic recording
- Simultaneous acoustic and ultrasonic recording
- Custom scheduled combinations of acoustic and ultrasonic monitoring
Compatible microphones include low-profile side-mounted acoustic microphones, front-mounted acoustic microphones, and omnidirectional or directional ultrasonic microphones. Front-mounted microphones can also be used with extension cables up to 100 metres.
Designed for Long Deployments
The Ranger is designed for extended field deployments with low power consumption and multiple powering options. The recorder can operate using either 4 or 8 AA batteries, or via external power supplies and solar panels for permanent or semi-permanent installations.
- Up to 100 nights ultrasonic recording using 8 AA batteries*
- Up to 700 hours acoustic recording using 8 AA batteries*
- Dual SD card slots supporting up to 2 × 1TB SDHC/SDXC cards.
*Battery life estimates based on 10% bat activity at 25°C using alkaline AA batteries.
Built for Field Use

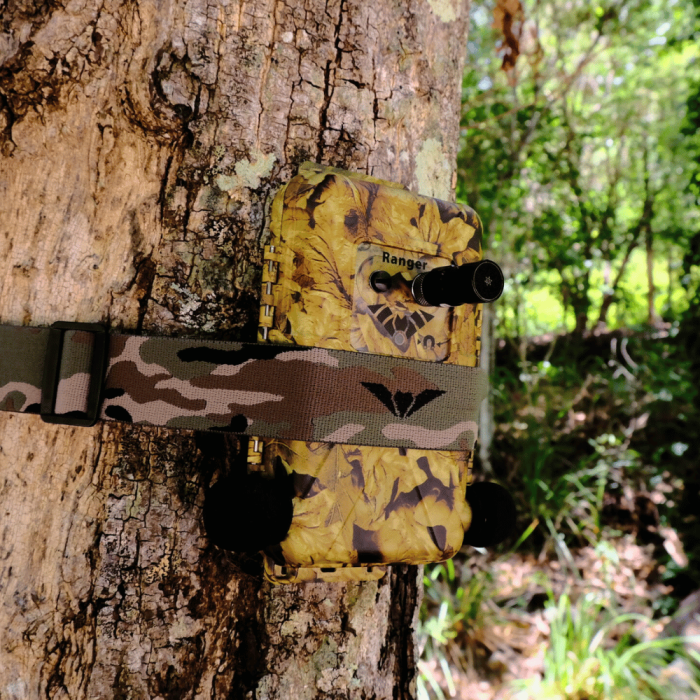

The rugged IP67-rated housing is designed to withstand demanding environmental conditions while remaining lightweight and portable. The camouflage finish helps reduce visibility during field deployments and the recorder includes multiple secure mounting options for use in woodland, wetlands, infrastructure surveys and remote monitoring locations.
Technical Specifications
- Dimensions: 194 × 123 × 50 mm
- Weight: 478 g (without batteries)
- Power: 4 or 8 AA batteries, external power or solar power options
- Memory: 2 × SDHC/SDXC card slots (up to 2TB total)
- Frequency range: 20Hz to 250kHz (microphone dependent)
- Sampling rates: 500, 384, 320, 192, 96, 48, 44.1, 32, 24 and 22.05 ksps
- Display: 2.4" colour LCD touchscreen
- Housing: IP67 weatherproof and shockproof
- GPS: Built-in with transect mode and daily fixes
- Outputs: .wav, .zc, .gpx and .csv
- Audio output: Headphone jack for frequency division and stereo playback
Supplied With
- Titley Ranger recorder
- Magnetic lanyard for status checking
- 3 microphone socket caps
- External power dust cap
- Quick Start User Guide
- Microphones: Choice of weatherproof acoustic microphones, omnidirectional and directional ultrasonic microphones
Optional Accessories
- Microphone extension cables
- Solar panel and external power accessories
- Security box and python lock
Warranty
- Recorder: 2 years
- Microphones: 1 year
- External Dimensions: H 194mm x W 123mm x D 50mm Weight: 478g / 16.86oz. (without batteries)
- Power Requirements: 4 or 8 AA batteries, external power and solar power options Battery Life: 700 hours acoustic / 100 nights ultrasonic using 8 AA batteries*
- Memory: 2 x SDHC/SDXC cards (2 x 1TB) Audio Output: Headphone jack for frequency division output (ultrasonic) and stereo reproduction (acoustic)
- Frequency Range: 20Hz up to 250kHz (depending on microphone)
- Housing: Camouflage, weatherproof and shockproof (IP67) with tripod mount
- GPS: Built-in (daily GPS fixes, transect mode - GPS fix every second)
- File Output: Full spectrum (.wav), zero crossing (.zc), GPS track (.gpx) and temperature sensor log (.csv)
- Sampling Rates: 500, 384, 320, 192, 96, 48, 44.1, 32, 24, 22.05 ksps Channels: 3 channels. 1 (front) ultrasonic or acoustic, and 2 (sides) acoustic-only. Capable of simultaneous recording (stereo acoustic and ultrasonic)
- Display: 2.4” Colour LCD touchscreen Warranty: Recorder 2 years, microphones 1 year
- Optional Accessories: Low-profile side-mount or front-mount acoustic microphones, front-mount omnidirectional or directional ultrasonic microphone, lockable security box, microphone extension cables, fused power lead, solar panel
* Ultrasonic battery life estimations based on 10% bat activity at 25°C and 10 hour nights recording at 320ksps using 8 alkaline AA batteries. Acoustic battery life estimations based on continuous mono recording at 32ksps using 8 alkaline AA batteries
